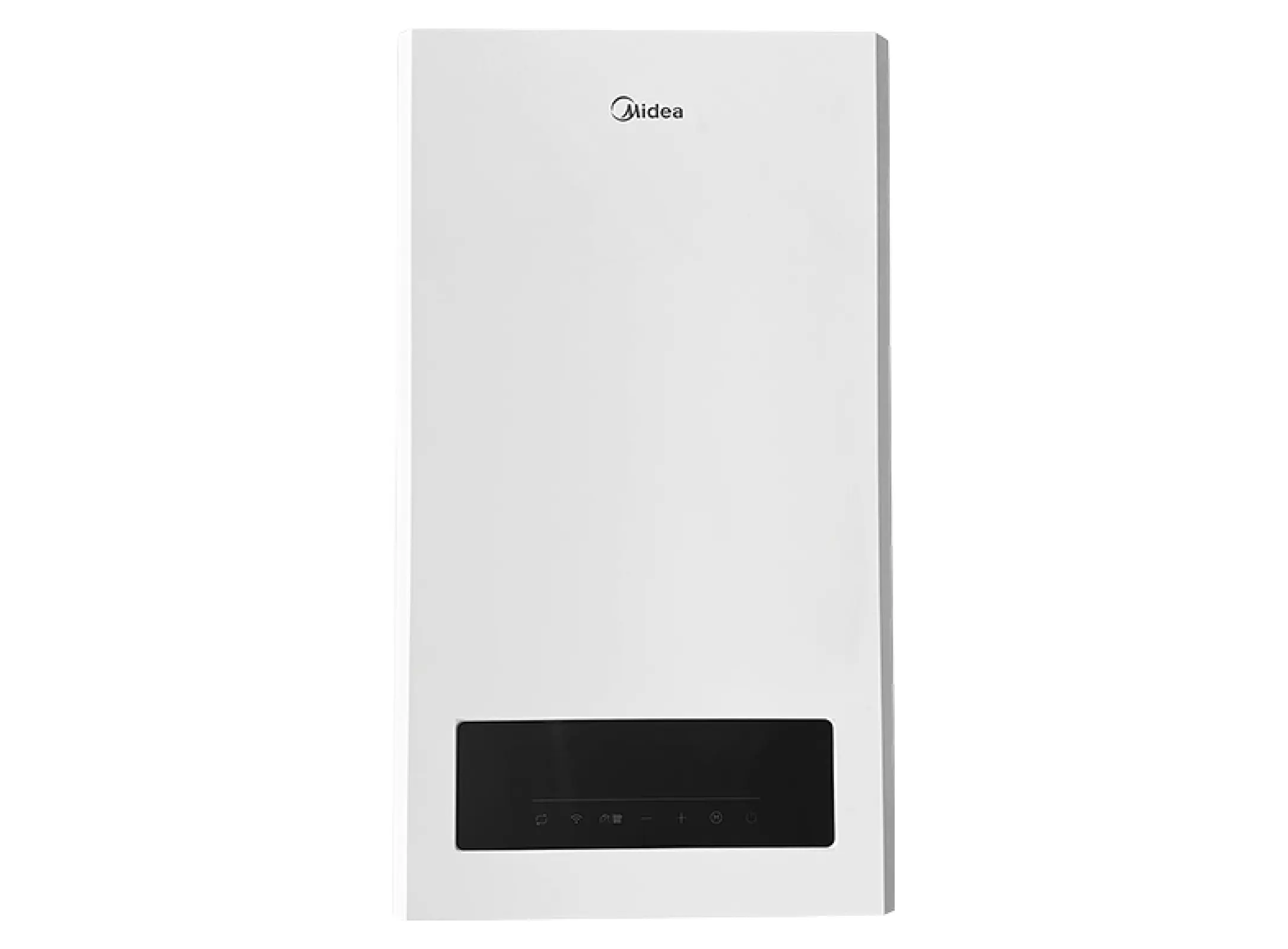

Central Heating Boiler Midea L1PB28-C28WM, 28 kW, Touch Control, White

The Midea L1PB28-C28WM is a wall-mounted natural gas combi boiler for space heating and domestic hot water. Its rated heat input is 28 kW with a rated heat output of 25.1 kW and 89.5% efficiency. Heating temperature is adjustable from 30 to 80°C, floor heating from 30 to 60°C and hot water from 35 to 60°C. At Δt=25K it supplies 14.3 litres of hot water per minute. Combustion air is drawn from outside and flue gases exit through a φ60/φ100 coaxial pipe. The boiler has a 6-litre expansion tank, IPX4 protection, a summer mode and overheating protection, and a touch panel with display makes temperature control simple. Compact dimensions of 700×420×243 mm and a net weight of 30 kg make installation easier.

Product Description :

• Brand: Midea
• Model: L1PB28-C28WM
• Product Type: Central heating boiler (combi)
• Fuel: Natural gas
• Combustion Air Supply: From outside
• Rated Heat Input: 28 kW
• Minimum Heat Input: 8.9 kW
• Rated Heat Output: 25.1 kW
• Minimum Heat Output: 7.7 kW
• Efficiency: 89.5%
• Heating Temperature Range: 30–80°C
• Floor Heating Temperature: 30–60°C
• Hot Water Temperature: 35–60°C
• Hot Water Output (Δt=25K): 14.3 L/min
• Hot Water Output (Δt=30K): 11.9 L/min
• Heating System Pressure: 0.04–0.3 MPa
• Hot Water Pressure: 0.02–0.8 MPa
• Expansion Tank: 6 L
• Control: Touch, with display
• Wi-Fi: Yes
• Summer Mode: Yes
• Overheating Protection: Yes
• Power Supply: 220V / 50Hz
• Max. Electric Power: 120 W
• Protection Rating: IPX4
• Gas Connection: G3/4
• Hot/Cold Water Connections: G1/2
• Flue Pipe: φ60/φ100
• Dimensions (H×W×D): 700 × 420 × 243 mm
• Weight (Net / Gross): 30 / 33 kg
• Color: White
• Warranty: 36 months
