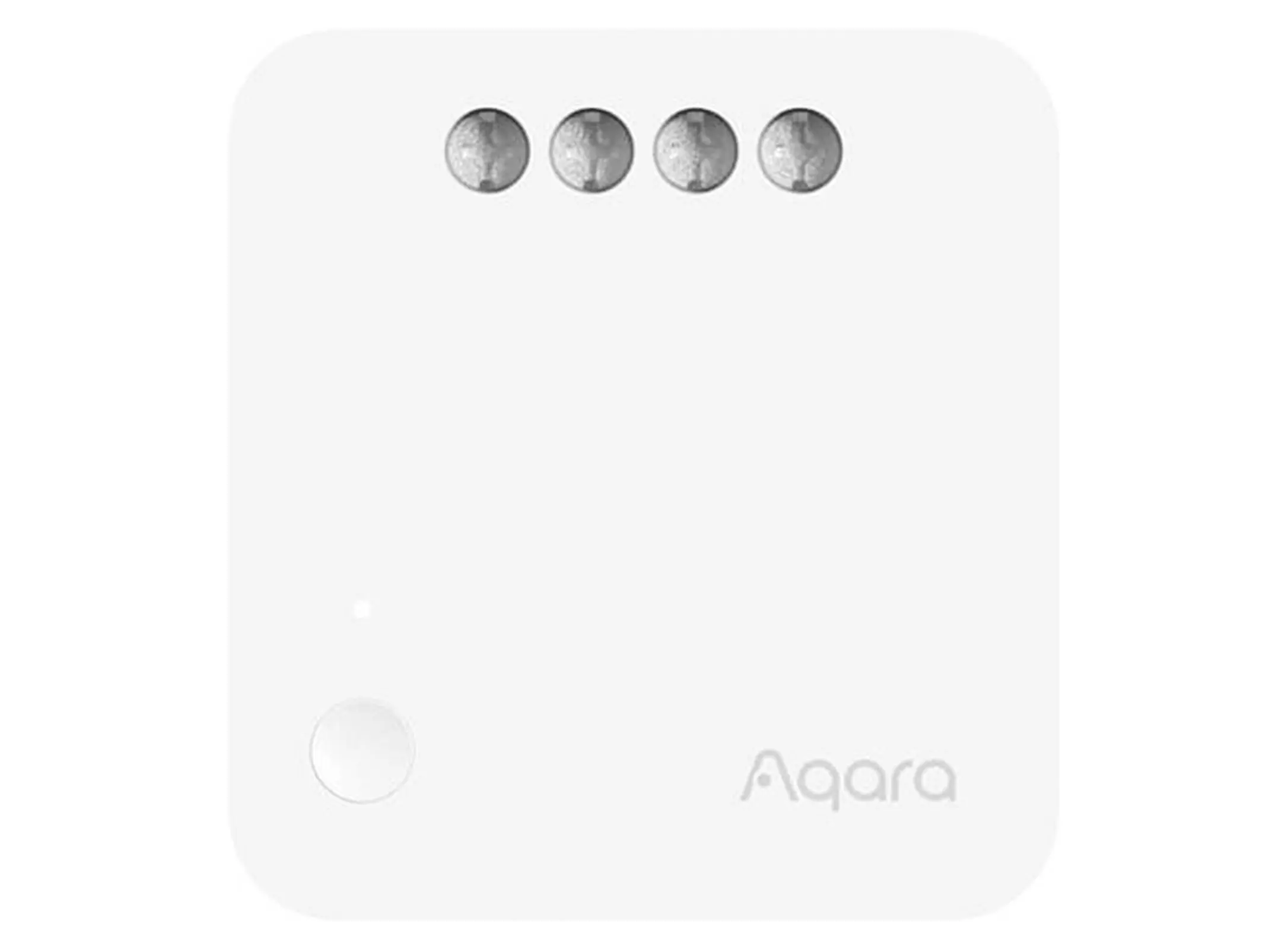

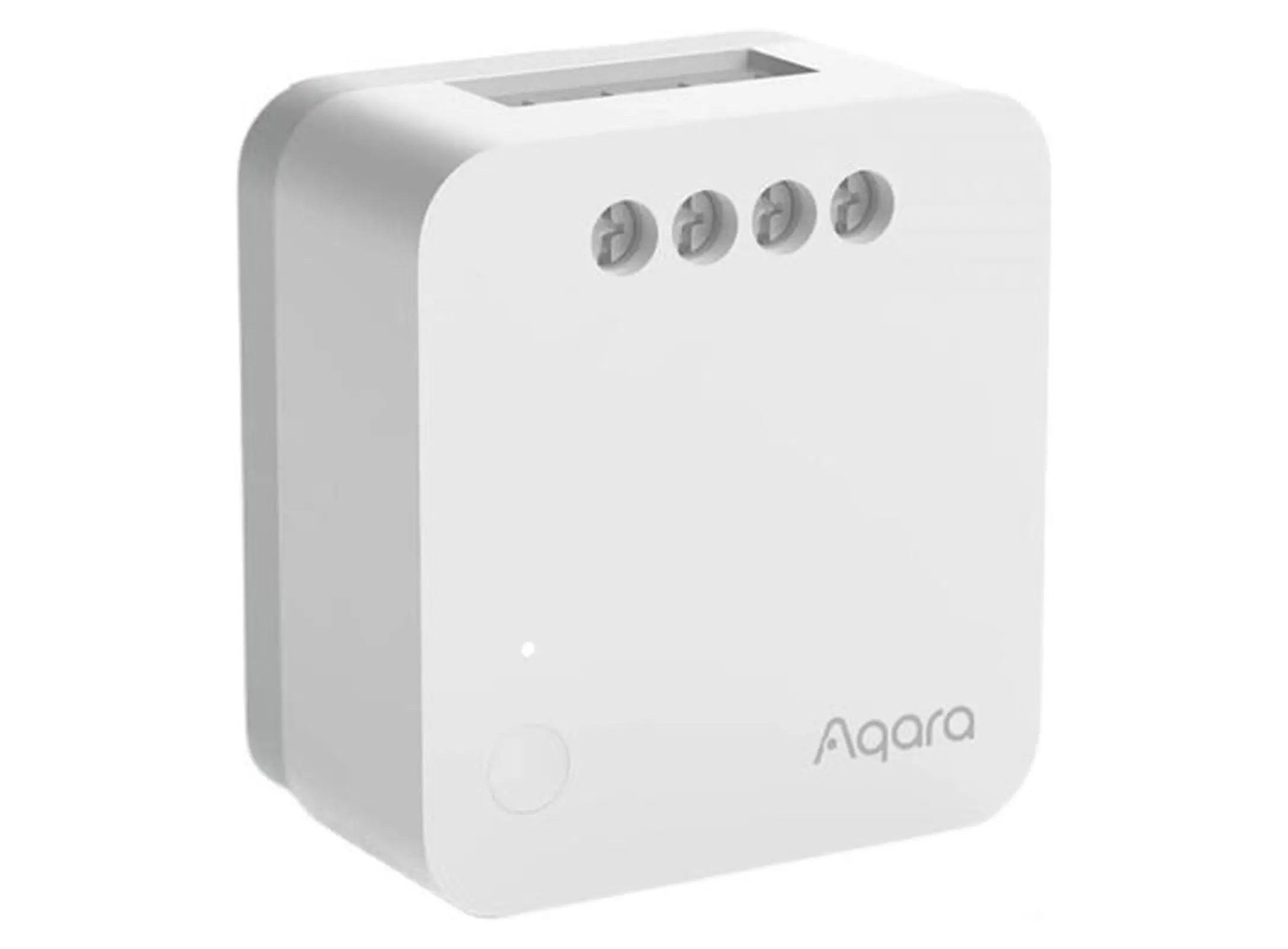

Smart Relay Module Aqara Single Switch Module T1 No Neutral SSM-U02, Zigbee 3.0, White

The Aqara Single Switch Module T1 (No Neutral), model SSM-U02, is a compact smart relay module that makes an existing wall switch or light smart without a neutral wire. It is an ideal solution for older wiring where the switch box has no neutral. The module uses the Zigbee 3.0 protocol and requires a compatible Aqara Zigbee 3.0 hub; with the hub you get remote app control, scheduling and scenes together with other Aqara devices. It can be controlled in the Aqara Home app and, via a suitable hub, with Apple HomeKit, Alexa and Google Assistant. The module supports connection to existing two-way switches and features overheat and overload protection. Electrical rating: 100–250 V AC, max 5 A, min 3 W, max 1250 W resistive load. Measuring just 42.9 × 40 × 21.4 mm, it fits almost any wall box. For indoor use only.

Product Description :

• Brand: Aqara
• Model: SSM-U02
• Name: Single Switch Module T1 (No Neutral)
• Product Type: Smart relay module
• Neutral Wire: Not required
• Connectivity
• Wireless Protocol: Zigbee 3.0
• Hub: Aqara Zigbee 3.0 hub required
• Zigbee Frequency: 2405–2480 MHz
• App: Aqara Home
• Compatibility: Apple HomeKit, Alexa, Google Assistant (via hub)
• Electrical
• Rated Voltage: 100–250 V AC, 50/60 Hz
• Max Current: 5 A
• Load: Min 3 W, max 1250 W (resistive)
• Features
• 2-Way Switch Support: Yes
• Overheat/Overload Protection: Yes
• General
• Dimensions: 42.9 × 40 × 21.4 mm
• Operating Temperature: 0°C ~ 35°C
• Usage: Indoor only
• Color: White
